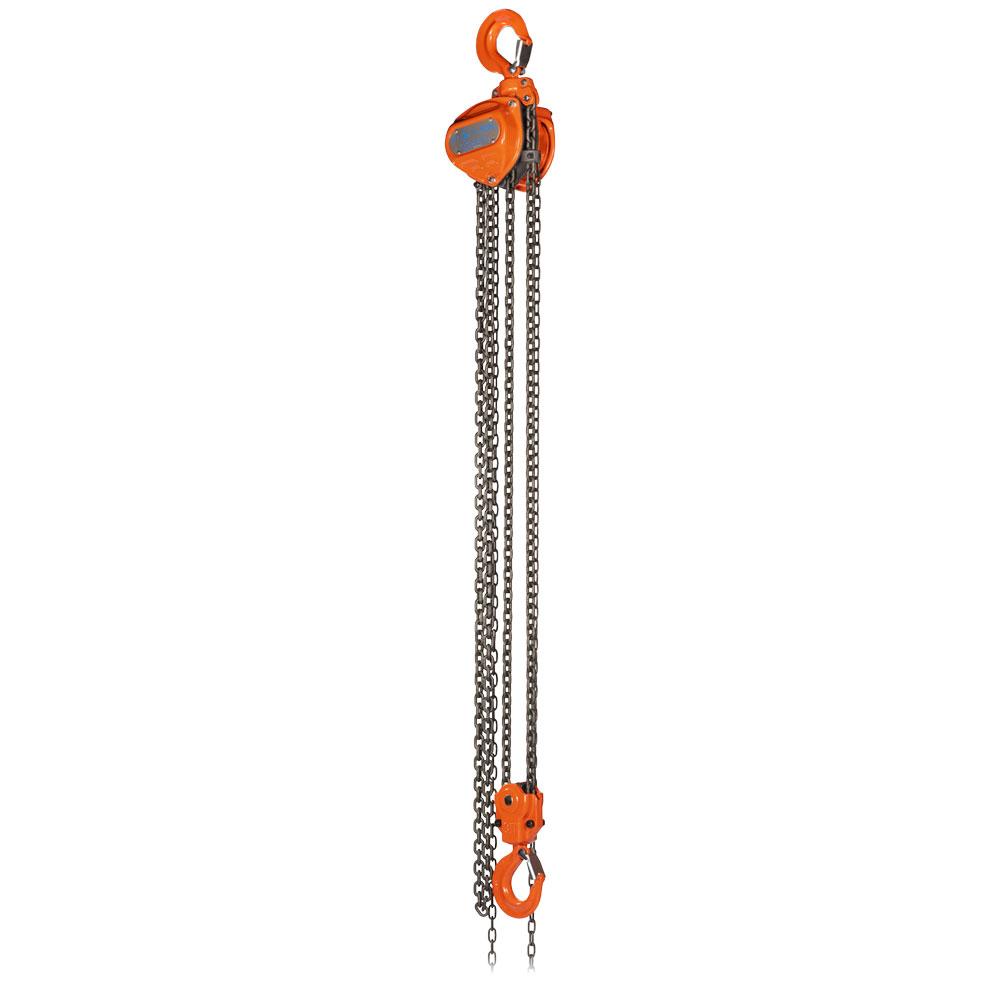

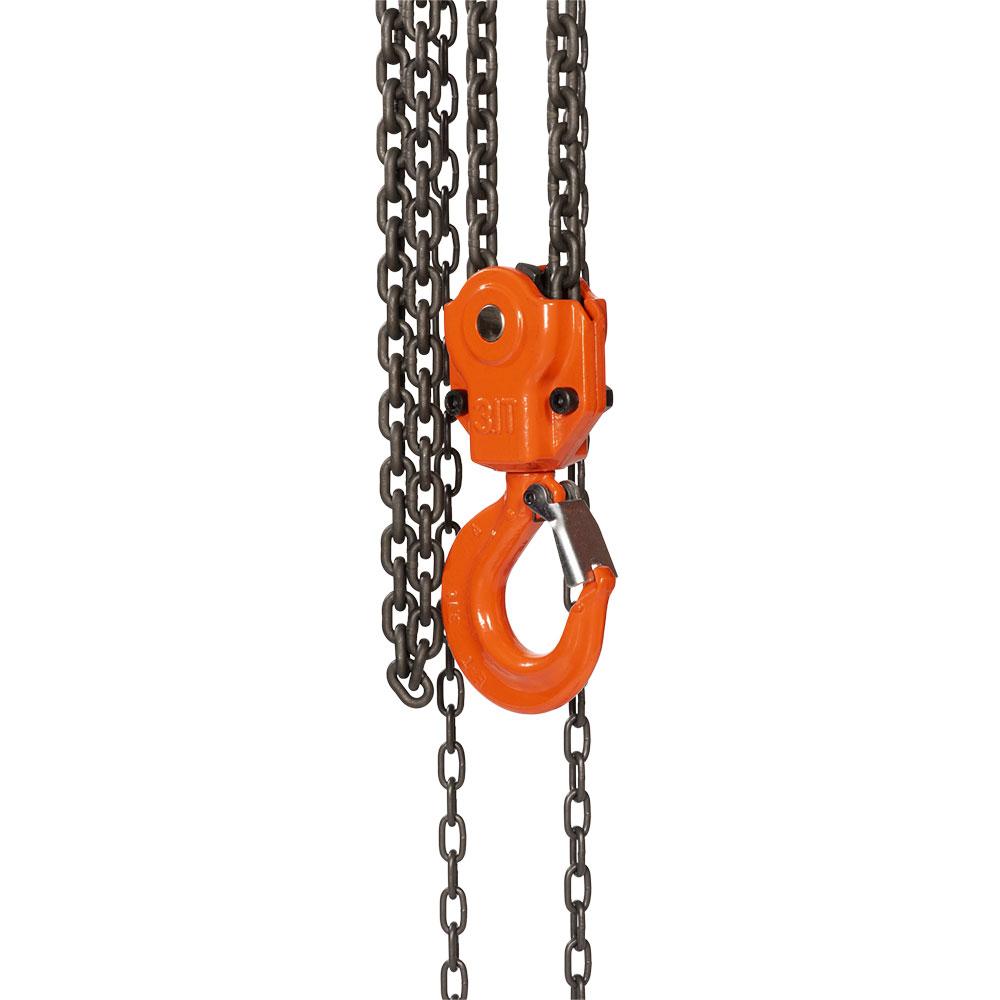

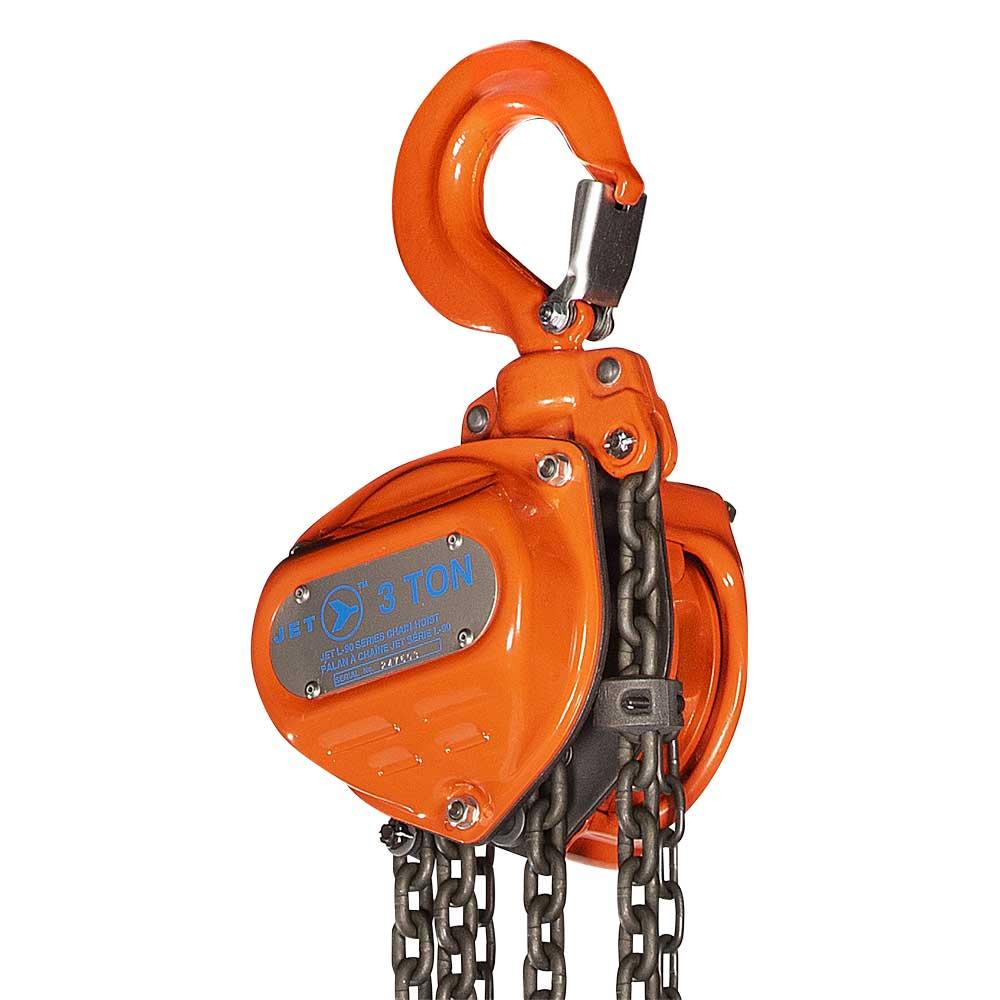

5 Ton 10' Lift KCH Series Chain Hoist - Heavy Duty
$
1,429
93
/ 1
- Part Number: 101152
- UPC: 00059629869390
- Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Heavy duty chain hoists built using high quality and durable components that allow you to elevate, suspend and lower loads safely and easily.
Specifications
Details
Catégorie industriel:
Manutention des matériaux
Sous catégorie industriel:
Palans et chariots
Sous type industriel:
Treuils à chaîne manuels
Brand:
JET
Capacity (lb.):
11,000 lb
Capacity (T):
5 T
Catégorie de fabricant:
Palans à chaîne
Certification:
ASME B30.16 standards|ISO 9001-2000 certified factory
Country of Origin:
CN
Duty Level:
Heavy Duty
Each Qty.:
1
Force Required to Lift:
83 lb
Head Room:
23-5/8"
HTS (Harmonized Tariff Schedule) Code:
8425.19.00.10
Indice de sous-groupe:
1691
Inner Pack Qty.:
0
Item Length (inches):
14.21
Item Weight (lbs):
14.3960
Length of Hand Chain Pulled to Lift Load to 1':
198'
Lift (ft.):
10'
Load Chain Diameter:
9.0 mm
Load Chain Grade:
100
Min. Distance Between Hooks:
23-5/8"
Model Number:
KLP-75-5
Number of Falls:
2
Number of Safety Hooks:
2
Package Quantity:
1
Package UPC:
10059629869441
spec1:
Poids dexpédition
Special Features:
Non-asbestos brake discs
UPC:
059629869444
value1:
93.6 lb (42.6 kg)
Other Details
Caged ball bearings on load sprocket provide smooth and easy operation
Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
High impact gear case and brake cover for heavy duty service
Ideal for rigging, lifting, and horizontal pulling applications
Made with grade 100 load chain for superior strength
